BZD column mounted jib crane

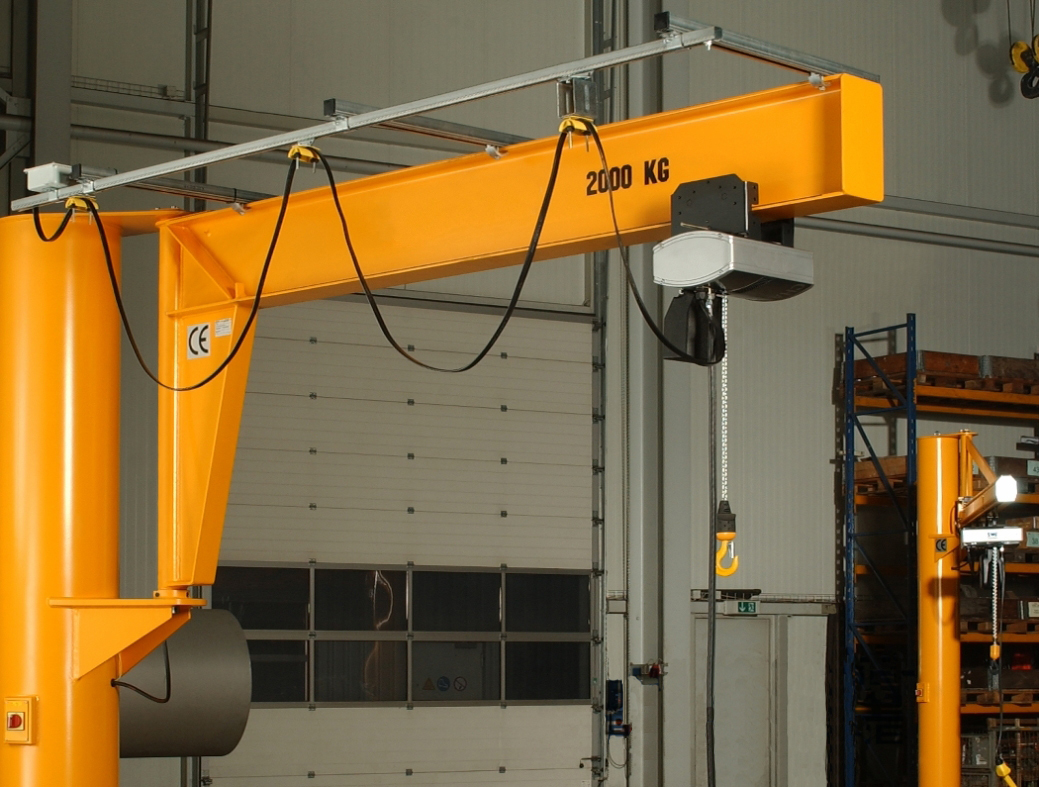

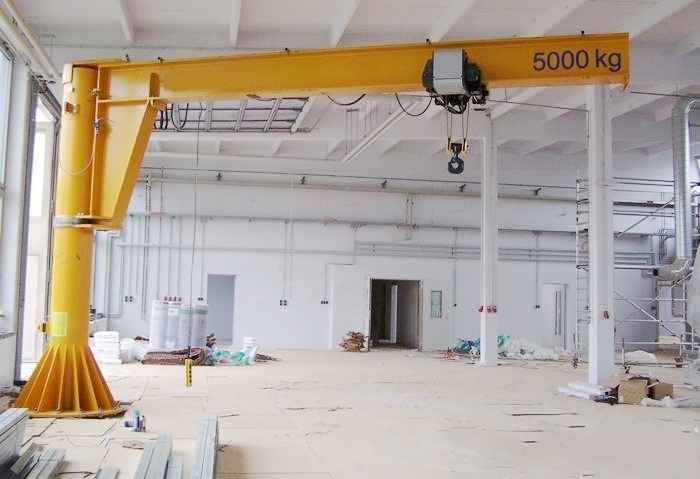

BZD column mounted jib crane is a kind of hoisting machine used in conjunction with electric chain hoist or wire rope electric hoist. It has two types of operation: electric rotation and manual rotation. All electric rotation can be controlled by controller, electric rotation and lifting can be set single speed or dual speed. BZD column mounted jib crane is a light intermediate working system with rated working capacity of 0.25t, 0.5t, 1t, 2t, 3t, 5t, 10t, 16t.

Structure and operation

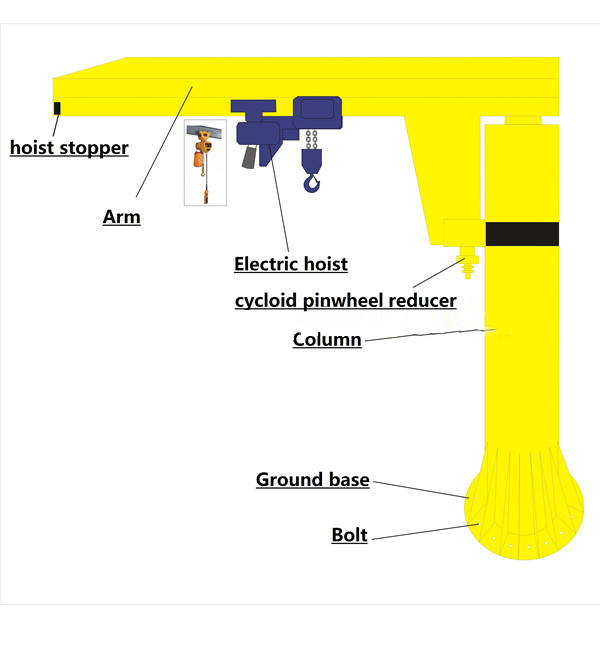

1. This machine is mainly composed of cantilever, slewing device and electric chain hoist.

2. The electric chain hoist has the function of lifting and traveling on the beam.

3. The cantilever beam can be driven by the speed reducer on the rotary device to perform the rotary motion.

4. The operation of column mounted jib crane is realized by the flashlight button controller. The controller has eight buttons that control the level of fast rise, fast fall, slow rise, slow drop, left and right moving of hoist trolley, and the swing arm rotation.

Column mounted jib crane Features

1. The structure is simple, the operation is convenient, the occupied space is small, and the working range is large;

2. The lifting mechanism adopts electric chain hoist, two-speed control;

3. The trolley also can be chosen the single speed or two speed control;

4. Rotation angle: 360 degrees of rotation (infinite rotation);

5. The slewing mechanism is equipped with a cycloid reducer;

6. The trolley is electrically conductive with a flat cable pulley, which has good electrical conductivity and less durable faults;

7. The flashlight control cable and the electric hoist conductive cable travel separately, and the field use adaptability is strong;

8. The electric hoist and the rotary reducer are controlled by wireless remote control.

Column mounted jib crane Safety and reliability

1. The hoisting mechanism is provided with an overload limiter;

2. The lifting mechanism is provided with upper and lower limit switches;

3. The trolley operating mechanism uses mechanical and electrical position limiters;

4. The rotating mechanism uses mechanical and electrical position limiters;

5. Control system body ground leakage protection.
