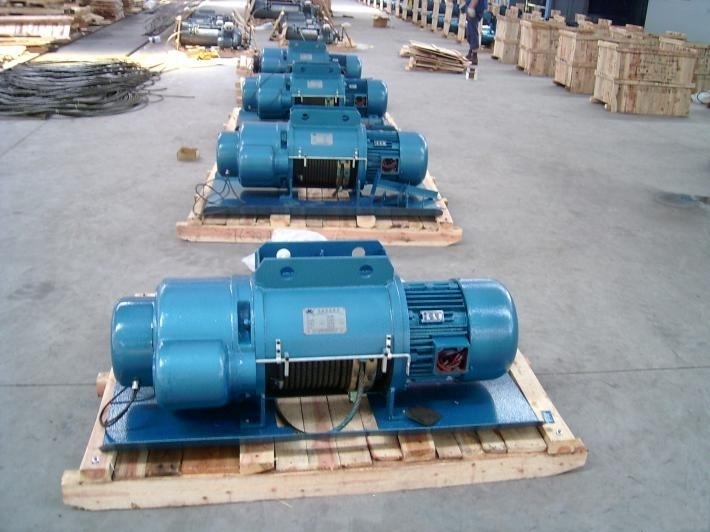

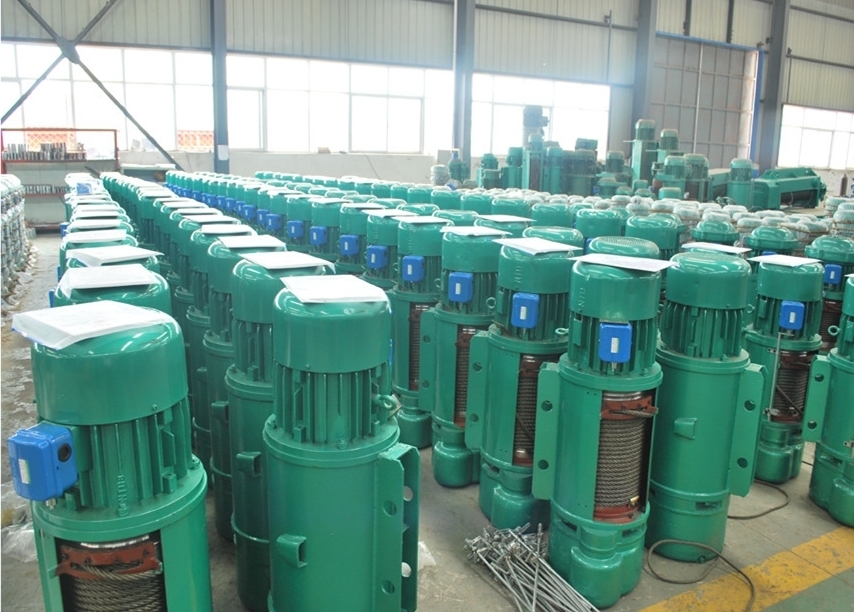

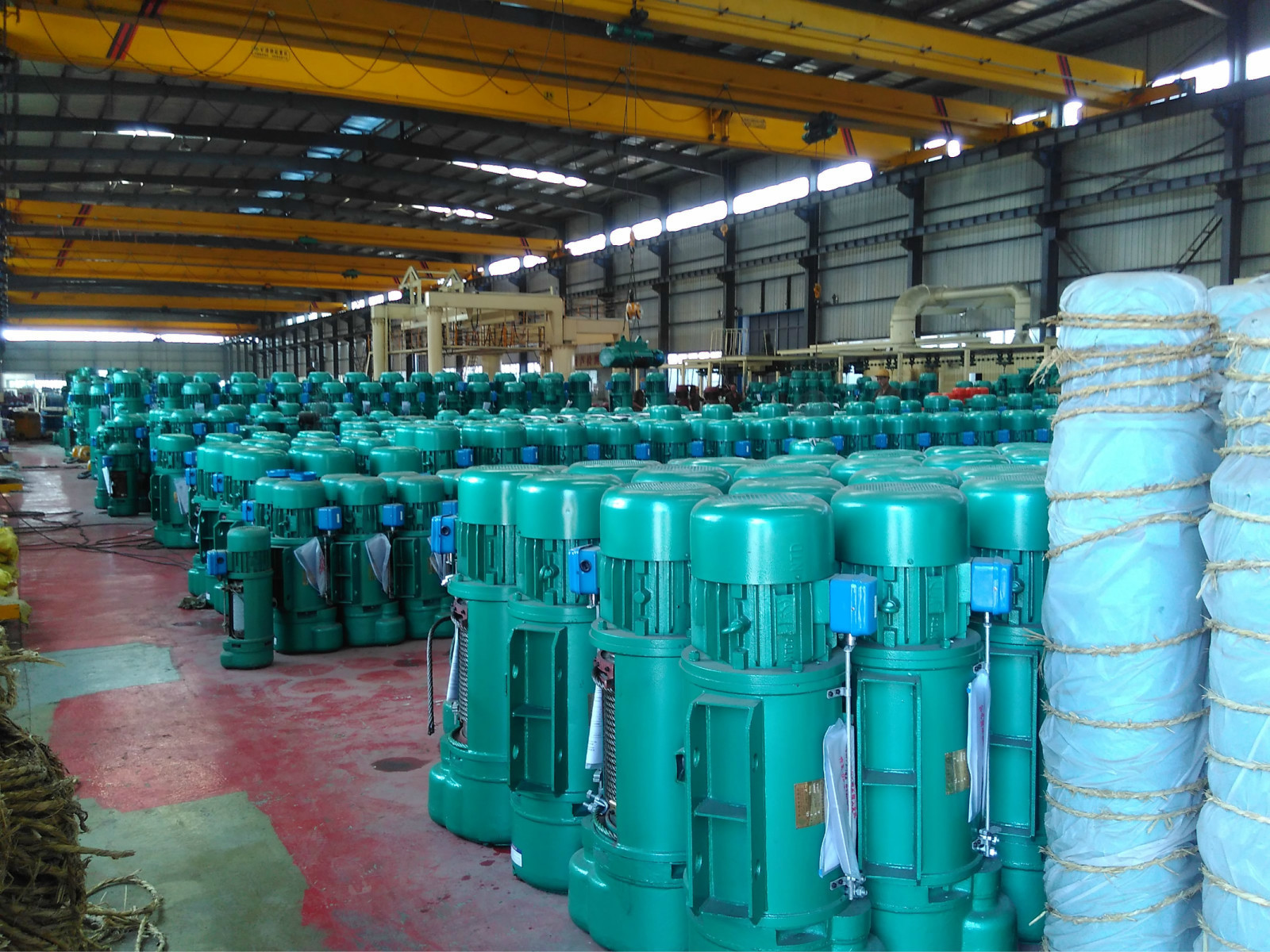

CD1 MD1 wire rope electric hoists

CD1 and MD1 wire rope electric hoists  have the advantages of light weight, small size, compact structure, variety specifications and stable operation. They can be used on straight, curved, circular overhead tracks on the same plane, or on electric single beam crane, manual single beam crane, bridge crane, suspension crane, cantilever crane, gantry cranes, etc. .

CD1 and MD1 electric hoists are widely used in factories, warehouses, docks, power stations, logging farms, etc. They are the ideal lifting equipment for lifting and transporting.

Wire rope electric hoist operating conditions: Ambient temperature: -20 °C ~ +40 °C

Working system: Intermediate JC25%, Heavy: JC40%, When the lifting capacity of the electric hoist is reduced by 30% in the intermediate working system, it is the heavy working system JC40% Electric hoist.

The wire rope electric hoist is operated by the person using the button on the ground, or it can be operated in the driver's cab or wired (wireless) remote control.

Product advantages

The CD1 MD1 wire rope electric hoist is an indispensable machine for improving labor efficiency and improving working conditions. Its product advantages are:

1. Variety of specifications, wide range of lifting and operating speed;

2. Compact structure and stable operation;

3. Cost-effective and easy to use;

4. The parts are highly versatile;

5. Optional manual trolleys and electric trolleys of different speeds;

Technical content

1. The motor adopts the conical rotor motor to integrate power and braking force;

2. The hook is made of high-strength steel and is equipped with a locking device;

3. It has the functions of overload, overcurrent, voltage loss and break equal protection;

4. The power supply has a wide range of applications. It adopts 36V safe voltage control and can be divided into wireless and wired operation to make the operation more secure.

5. Brake materials do not contain harmful components, such as asbestos, make the product more environmentally friendly.
