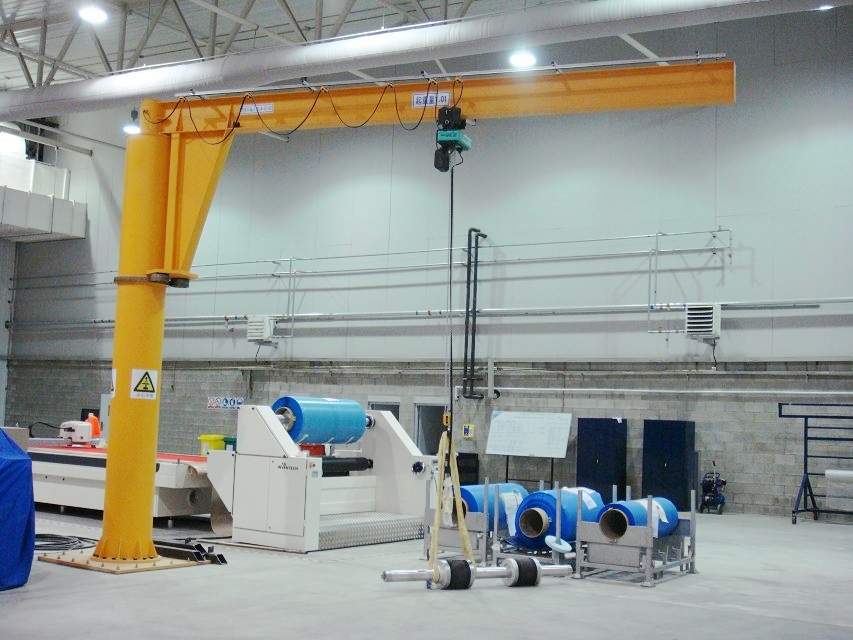

Free standing jib crane

Basic parameters:

1. Lifting weight: 0.5--16 ton;

2. Lifting height: +3-12m; (customized)

3. Swing arm length: +3-15m; (customized)

4. Rotation angle: 180, 270, 360 degrees;

Safety and reliability

1. The hoisting mechanism is provided with an overload limiter;

2. The lifting mechanism is provided with upper and lower limit switches;

3. The trolley operating mechanism uses mechanical and electrical position limiters;

4. The rotating mechanism uses mechanical and electrical position limiters.

5. Control system is good grounding

The free standing jib crane is operated by the flashlight button. The flashlight has 2-8 buttons, usually the 8-point switch controls the level of starting, stopping, fast rise, fast fall, slow rise, slow drop, left and right turn and hoist trolley horizontal forward and backward walking. Usually, it can be equipped with manual trolley within 500kg or manual rotary mechanism.

Free standing jib crane advantage:

1. Single lever, both ends are right-handed for easy leveling;

2. All components, including the trolley stop, are bolted.

3. Ultra-light cantilever arm with copper bushing and high-strength brass graphite for easy rotation and precise positioning.

4. Safety: The weld-free, one-piece bracket assembly provides a strong guarantee for safety.

5. Full rated load: 15% of the rated lifting capacity of the free standing jib crane is considered as the total weight of the hoist and hoist trolley, and 25% is the impact load to ensure the efficient use of the weight of the jib crane.
