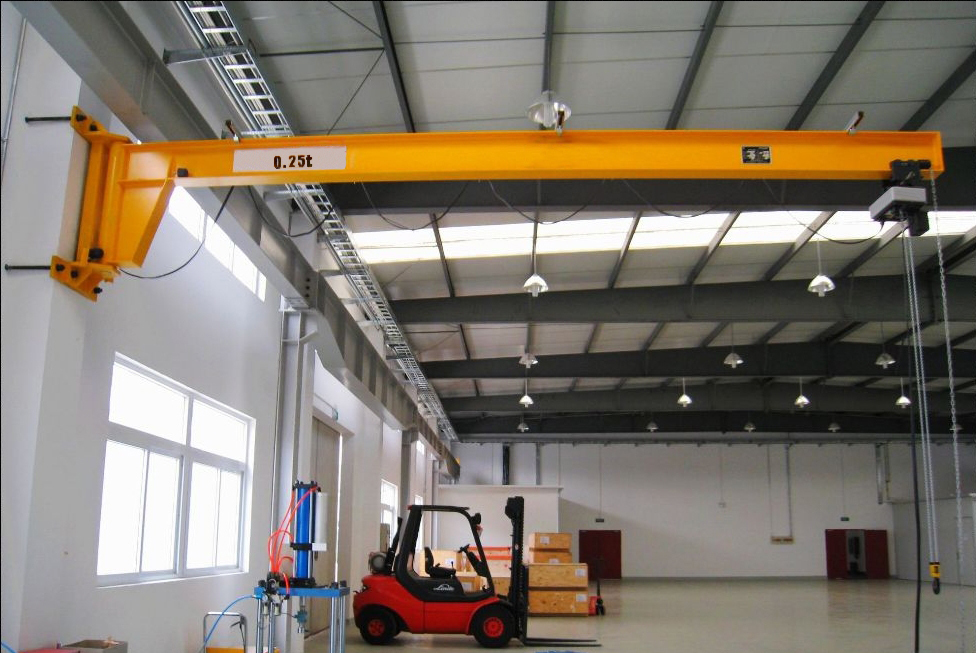

Wall mounted jib crane

Wall mounted jib cranes are also known as: wall column jib cranes, wall mounted cantilever cranes, which are new products developed with reference to foreign imported equipment and designed according to user needs, has the advantages of novel structure, reasonable, simple, convenient operation, flexible rotation, light weight and flexible load movement. It is an energy-saving and efficient material lifting equipment, which can be widely used in production lines and assembly lines of factories, mines and workshops, lifting and transporting of machine tools and lifting of heavy objects in warehouses, docks, etc.

Wall mounted jib crane performance parameters:

1. Lifting weight: 0.5 - 5t;

2. Lifting height: +3 - 12m;

3. Radius of the arm: +3 -15m;

4. Lifting trolley operation mode: electric operation;

5. Angle of rotation: 180 degrees (infinite rotation);

6. Rotary mode: electric or manual, voltage optional (220 ~ 600v, 50/60hz);

7. The hoist is equipped with electric chain hoist or electric wire rope hoist.

Wall mounted jib crane structure

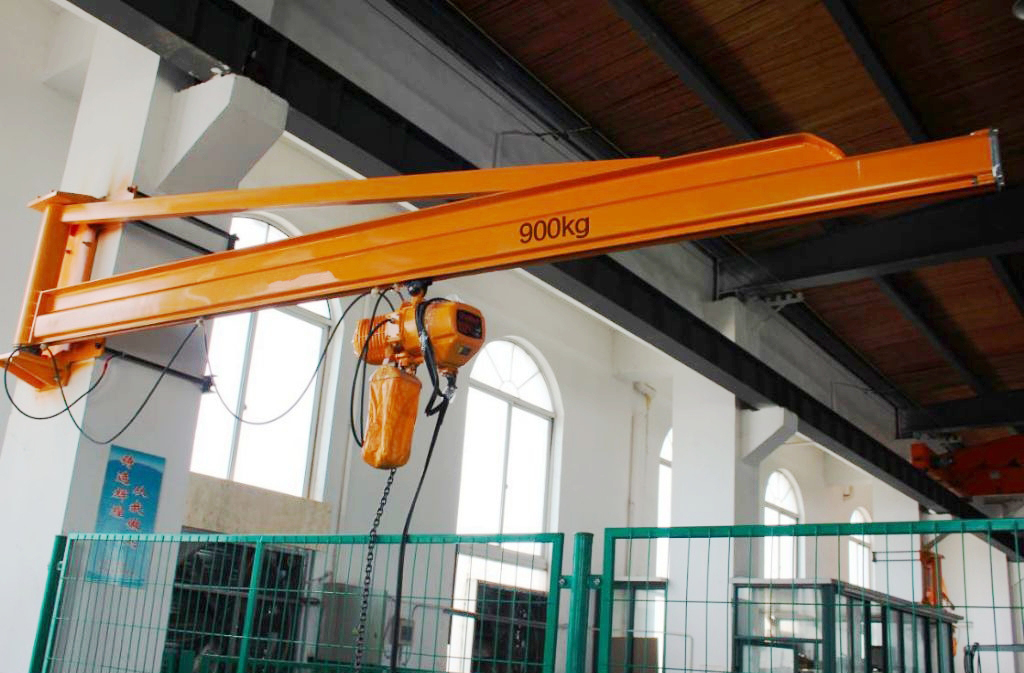

The wall mounted jib crane is composed of a bracket, a swing cantilever arm and an electric hoist. The cantilever is fixed on the wall or cement column, and the angle of rotation can be selected according to the user's needs. The swing part can be chosen the manual type and electric type.

The electric hoist is mounted on the cantilever rail for lifting heavy objects. The wall type jib crane is used with HHBB type electric chain hoist or CD type electric hoist, which is easy to operate, reliable in operation and convenient in maintenance.

The biggest advantage of the wall mounted jib crane is that it can be directly installed on the wall or column, or it can be installed on the machine equipment, so that it does not need to occupy any floor space, and the installation method is simple. If the steel or cement column of the work site can be utilized, and the lifting working radius is close to the column, it is more economical for the user to select the wall mounted jib crane.
