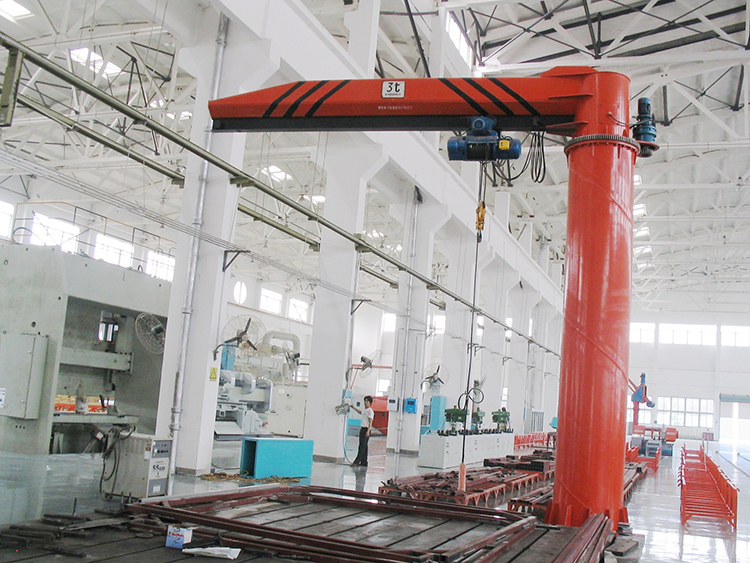

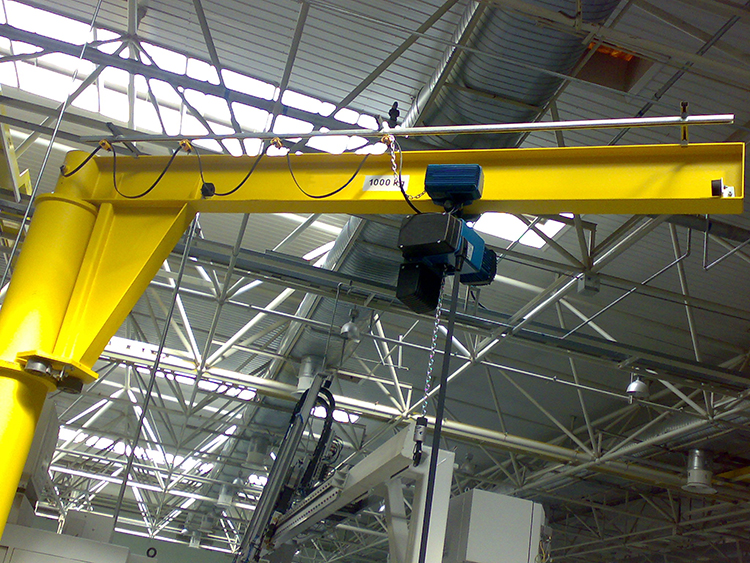

Floor mounted jib crane

Performance parameters

1. Model: BZD

2. Lifting weight: 1 ~ 16t;

3. Lifting height: 3 ~ 12m;

4. Radius of the arm: 3 ~ 15m;

5. Trolley running mode: electric operation;

6. Rotary angle: 180/270/360 degrees.

7. The floor mounted jib crane is equipped with electric chain hoist or electric wire rope hoist, the wire rope hoist is suitable the fast lifting speed, the chain hoist is lower, and can choose the manyal type.

Floor mounted jib crane Features

1. It has the advantages of large lifting capacity, large working range, simple structure, convenient operation and maintenance, etc;

2. When the plant has a limited space height, can choose the low headroom electric hoist;

3. Lifting electric chain hoist can be double speed control;

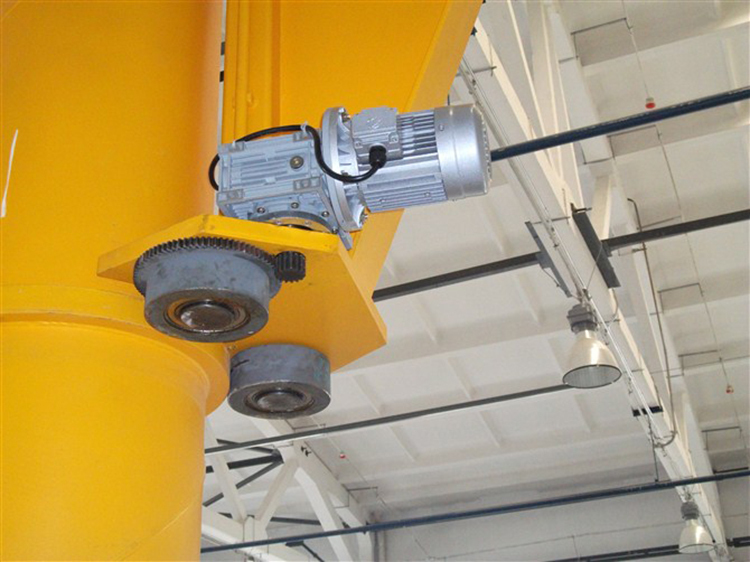

4. Rotary mode: electric driven, the cycloidal pinwheel reducer of the slewing mechanism can also be upgraded to variable frequency control;

5. Rotation angle: Rotation angle 180/270/360 degrees, can be customized; (infinite rotation can also be installed with limit device);

6. Electric hoist is electrically conductive with built-in C-type track trolley power supply, which is easy to maintain and durable;

7. The flashlight control cable and electric hoist conductive cable travel separately, strong adaptability;

8. The electric hoist and the rotary reducer are controlled by wireless remote control;

9. Adopt the independent control of electrical control cabinets.
